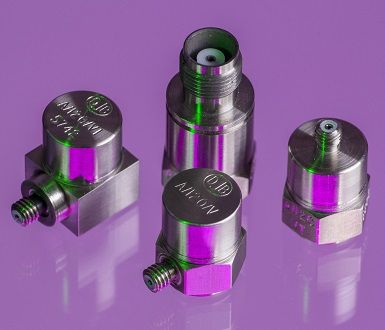

Piezo-Tronic IEPE Accelerometer - A/123/E

1mV/g up to 250mV/g (±10%) ∙ 3.4-5.2gm ∙ -55°C to 125°C

Model Variations

A/123/E, A/123/EB, A/123/TB, A/123/TE, A/123/E-1, A/123/TE-1

Features

• Lightweight Design
• Microdot Connector
• Available from 1 to 250mV/g output.

Applications

Modal Analysis of lightweight structures
Automotive
Aerospace
Impact Testing
Vibration Shaker Testing
Structural Testing
Auto/Aero structural body surveys
General Vibration Measurement

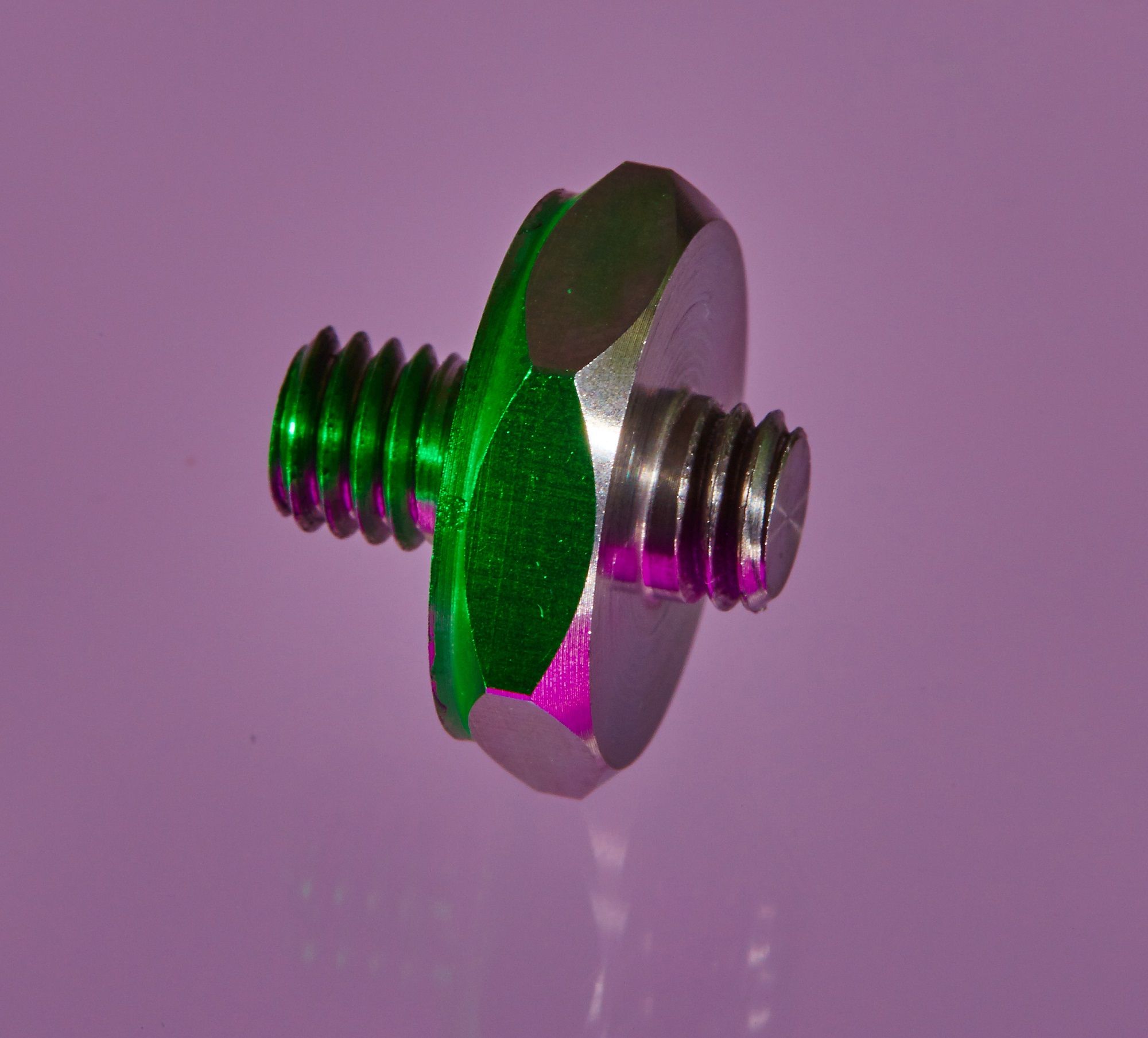

The A/123 range of Piezo-tronic IEPE accelerometers features the Konic Shear® design sensing element, packaged to offer a choice of side/top entry connectors. Mounting options include flat base (for adhesive mounting) in addition to tapped base versions and isolated base versions with integral ceramic bases. Ideal for applications requiring a low mass, compact design for minimal mass loading effect the A/123 offers wide frequency band with a linear response and is a highly versatile and robust accelerometer. Applications include, modal testing, general vibration testing, NVH, package testing, shock testing etc. NOTE: Voltage sensitivities shown are standard. We offer a wide range of sensitivities on request, and recommend that applications are evaluated to determine the requisite sensitivities

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
Specialist Cable Assembly - for all manufacturers
Cable and connector stock held for a quick turnaround
