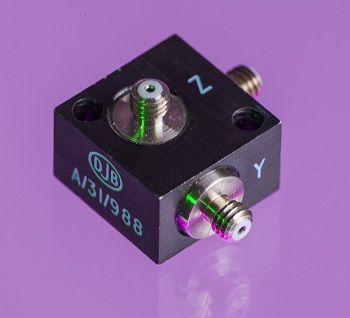

Piezoelectric Triaxial Accelerometer - A/31
7pC/g nom. ∙ 19gm ∙ -50°C to 220°C Max Temp
Features
• 2 x 3.25mm cut through holes for secure mounting.
• Lightweight design
• KONIC Shear® design.
• Electrically Insulated individual inserts, eliminating
ground loop interference.
• Microdot Socket - 10/32 UNF Thread.
Applications
- Modal Analysis of lightweight structures
- Automotive
- Aerospace
- High Temperature
- Machine Monitoring
- Condition Monitoring
- Impact Testing
- Industrial
- Vibration Shaker Testing
- Structural Testing
Lightweight triaxial vibration transducer compromising three Konic Shear® sensing elements all welded inserts bonded orthogonally into hard anodized aluminum housing.
The inserts are electrically insulated, individually and from the housing, thus eliminating ground loop interference. The additional mechanical isolation implicit in the construction provides near elimination of strain induced error.
The spatial response of a structure to dynamic forcing may lead to erroneous single axis vibration or shock measurement due to the inherent directional property of the transducer. In cases where this is deemed to be a problem, an orthogonal three axis measurement, allowing computation of absolute value and direction offers a solution. The d33 component suppression property of the Konic Shear design, resulting in minimization of cross axis error, is particularly advantageous for three axis measurement integrity.
Calibration
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
