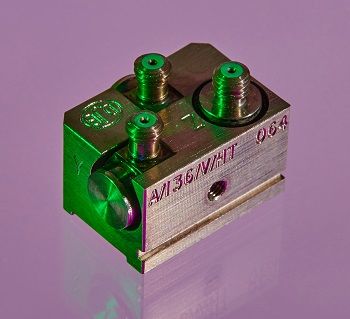

Piezoelectric Triaxial Accelerometer - A/36
5pC/g nom. ∙ 18gm ∙ -50°C to 220°C Max Temp
Model Variations
A/36, A/36-1
Features
• Adhesive Mounting or Clip Mounting or Bolt mounting for easy
mounting/removal.
• Lightweight design
• KONIC Shear® Sensing Element.
• Microdot Connector
Applications
- Modal Analysis of lightweight structures
- Automotive
- Aerospace
- Machine Monitoring
- Condition Monitoring
- Industrial
- Vibration Shaker Testing
- Structural Testing
Triaxial vibration transducer comprising of three independent charge output piezo-electric accelerometers mounted orthogonally within a titanium block and welded construction. It makes use of the Konic Shear® sensing elements to ensure a rugged and repeatable triaxial measurement under the most extreme conditions.
All the Microdot connectors are exiting in the same direction. Each insert is electrically insulated, individually from the housing, thus eliminating ground loop interference.
To avoid the effects of triboelectric noise low noise cable must be used terminating to a 10/32 microdot connector.
The A/36 can be clip mounted. The A/36-1 features M3 tapped mounting holes.
Calibration
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
Cable Assembly and Repair Service
- Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
- Specialist Cable Assembly - for all manufacturers
- Cable and connector stock held for a quick turnaround
