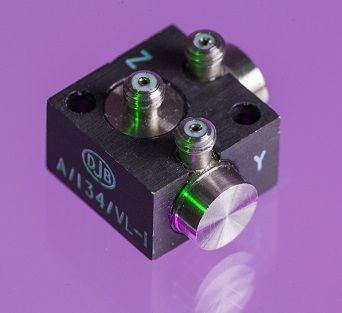

Piezo-Tronic Triaxial IEPE Acceleromter - A/134

1mV/g up to 200mV/g ∙ 19-22gm ∙ -50°C to 125°C

Model Variations

A/134/V, A/134/V-3

Features

• Cut through holes for secure mounting, see datasheet for options.
• Lightweight design
• KONIC Shear Sensing Element.

Applications

Modal Analysis of lightweight structures
Automotive
Aerospace
Machine Monitoring
Condition Monitoring
Impact Testing
Industrial
Vibration Shaker Testing
Structural Testing
Auto/Aero structural body surveys

Lightweight triaxial accelerometer compromising three, Konic Shear® IEPE, all welded inserts, bonded orthogonally into hard anodized aluminium housing. The inserts are electrically insulated individually and from the housing, thus eliminating ground loop interference. Low impedance O/P provides a high degree of noise immunity and allows use with low cost coaxial cable. The additional mechanical isolation implicit in the construction provides also near elimination of strain induced error. All the 3x10-32 UNF Microdot connectors are exiting in the same direction.

The d33 component suppression property of the Konic design, provides a minimization of cross axis error, and is particularly advantageous for three axis measurement integrity.

The multi sensor solution also offers the benefit of being repairable. If an insert is damaged it can usually be removed and replaced saving the cost of a new accelerometer

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
Specialist Cable Assembly - for all manufacturers
Cable and connector stock held for a quick turnaround
