DC MEMS Response Accelerometer Range
The AM range of accelerometers are MEMS (micro electro mechanical system) DC response voltage output devices for testing at low frequency vibration measurement from DC (0Hz) and above. There are monoaxial, biaxial and triaxial options each with a variable capacitance design and are available with a 2m integral cable fitted with a 7pin connector to suit the DJB DCM-03 MEMS signal conditioning unit or alternatively as bare wires.
Ideally suited to low frequency vibration applications including low level vibration where high sensitivity is required.
Due to their ability to measure DC response they can also be used to measure constant gravity application.
Model | Image | Sensitivity | Weight | Temperature Range | G Range |
---|---|---|---|---|---|

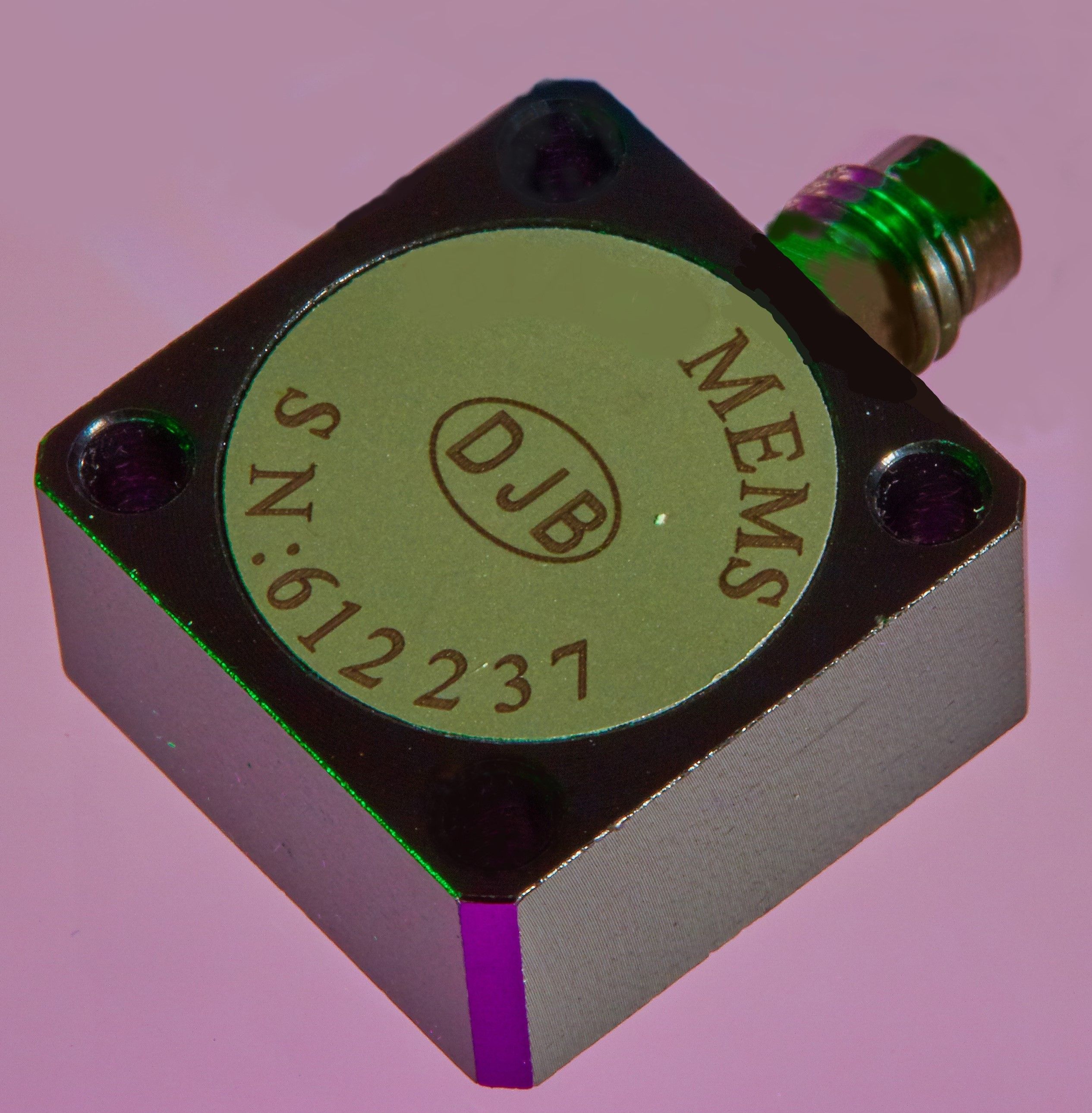

DC MEMS Monoaxial Accelerometers - Connector | |||||
AM/2.1000C | 1000mV/g | 12gms | -40°C to 120°C | ± 2g | |
AM/2HR.1000C | 1000mv/g | 12gms | -40°C to 120°C | ± 2g | |
AM/10.200C | 200mV/g | 12gms | -40°C to 120°C | ± 10g | |
AM/10HR.200C | 200mV/g | 12gms | -40°C to 120°C | ± 10g | |
AM/20.100C | 100mV/g | 12gms | -40°C to 120°C | ± 20g | |
AM/30HR.66C | 66.7mV/g | 12gms | -40°C to 120°C | ± 30g | |
AM/50.40C | 40mV/g | 12gms | -40°C to 120°C | ± 50g | |
AM/50HR.40C | 40mV/g | 12gms | -40°C to 120°C | ± 50g | |
AM/100.20C | 20mV/g | 12gms | -40°C to 120°C | ± 100g | |
AM/100HR.20C | 20mV/g | 12gms | -40°C to 120°C | ± 100g | |
AM/200.10C | 10mV/g | 12gms | -40°C to 120°C | ± 200g | |
AM/200HR.10C | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
Model | Image | Sensitivity | Weight | Temperature Range | G Range |
---|---|---|---|---|---|
DC MEMS Monoaxial Accelerometers - Integral Cable | |||||
AM/2.1000 | 1000mV/g | 12gms | -40°C to 120°C | ± 2g | |
AM/2HR.1000 | 1000mV/g | 12gms | -40°C to 120°C | ± 2g | |
AM/10.200 | 200mV/g | 12gms | -40°C to 120°C | ± 10g | |
AM/10HR.200 | 200mV/g | 12gms | -40°C to 120°C | ± 10g | |
AM/20.100 | 100mV/g | 12gms | -40°C to 120°C | ± 20g | |
AM/30HR.66 | 66.7mVg | 12gms | -40°C to 120°C | ± 30g | |
AM/50.40 | 40mV/g | 12gms | -40°C to 120°C | ± 50g | |
AM/50HR.40 | 40mV/g | 12gms | -40°C to 120°C | ± 50g | |
AM/100.20 | 20mV/g | 12gms | -40°C to 120°C | ± 100g | |
AM/100HR.20 | 20mV/g | 12gms | -40°C to 120°C | ± 100g | |
AM/200.10 | 10mV/g | 12gms | -40°C to 120°C | ± 200g | |
AM/200HR.10 | 10mV/g | 12gms | -40°C to 120°C | ± 200g |
Model | Image | Sensitivity | Weight | Temperature Range | G Range |
---|---|---|---|---|---|
DC MEMS Biaxial Accelerometers - Connector | |||||
AMB/2.1000C | 1000mV/g | 18gms | -40°C to 120°C | ± 2g | |
AMB/2HR.1000C | 1000mV/g | 18gm | -40°C to 120°C | ± 2g | |
AMB/10.200C | 200mV/g | 18gms | -40°C to 120°C | ± 10g | |
AMB/10HR.200C | 200mV/g | 18gms | -40°C to 120°C | ± 10g | |
AMB/20.100C | 100mV/g | 18gms | -40°C to 120°C | ± 20g | |
AMB/30HR.66C | 66.7mV/g | 18gms | -40°C to 120°C | ± 30g | |
AMB/50.40C | 40mV/g | 18gms | -40°C to 120°C | ± 50g | |
AMB/50HR.40C | 40mV/g | 18gms | -40°C to 120°C | ± 50g | |
AMB/100.20C | 20mV/g | 18gms | -40°C to 120°C | ± 100g | |
AMB/100HR.20C | 20mV/g | 18gms | -40°C to 120°C | ± 100g | |
AMB/200.10C | 10mV/g | 18gms | -40°C to 120°C | ± 200g | |
AMB/200HR.10C | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
Model | Image | Sensitivity | Weight | Temperature Range | G Range |
---|---|---|---|---|---|
DC MEMS Biaxial Accelerometers - Integral Cable | |||||
AMB/2.1000 | 1000mV/g | 18gms | -40°C to 120°C | ± 2g | |
AMB/2HR.1000 | 1000mv/g | 18gms | -40°C to 120°C | ± 2g | |
AMB/10.200 | 200mV/g | 18gm | -40°C to 120°C | ± 10g | |
AMB/10HR.200 | 200mV/g | 18gm | -40°C to 120°C | ± 10g | |
AMB/20.100 | 100mV/g | 18gms | -40°C to 120°C | ± 20g | |
AMB/30HR.66 | 66.7mV/g | 18gms | -40°C to 120°C | ± 30g | |
AMB/50.40 | 40mV/g | 18gms | -40°C to 120°C | ± 50g | |
AMB/50HR.40 | 40mV/g | 18gm | -40°C to 120°C | ± 50g | |
AMB/100.20 | 20mv/g | 18gms | -40°C to 120°C | ± 100g | |
AMB/100HR.20 | 20mV/g | 18gms | -40°C to 120°C | ± 100g | |
AMB/200.10 | 10mV/g | 18gms | -40°C to 120°C | ± 200g | |
AMB/200HR.10 | 10mV/g | 18gms | -40°C to 120°C | ± 200g |
Model | Image | Sensitivity | Weight | Temperature Range | G Range |
---|---|---|---|---|---|
DC MEMS Triaxial Accelerometer - Integral Cable | |||||
AMT/2.1000 | 1000mV/g | 30gm | -40°C to 120°C | ± 2g | |
AMT/2HR.1000 | 1000mV/g | 30gm | -40°C to 120°C | ± 2g | |
AMT/10.200 | 200mV/g | 30gm | -40°C to 120°C | ± 10g | |
AMT/10HR.200 | 200mV/g | 30gm | -40°C to 120°C | ± 10g | |
AMT/20.100 | 100mV/g | 30gm | -40°C to 120°C | ± 20g | |
AMT/30HR.66 | 66.7mV/g | 30gms | -40°C to 120°C | ± 30g | |
AMT/50.40 | 40mV/g | 30gms | -40°C to 120°C | ± 50g | |
AMT/50HR.40 | 40mV/g | 30gms | -40°C to 120°C | ± 50g | |
AMT/100.20 | 20mV/g | 30gms | -40°C to 120°C | ± 100g | |
AMT/100HR.20 | 20mV/g | 30gms | -40°C to 120°C | ± 100g | |
AMT/200.10 | 10mV/g | 30gms | -40°C to 120°C | ± 200g | |
AMT/200HR.10 | 10mV/g | 30gms | -40°C to 120°C | ± 200g |
