Monoxial Charge Output Accelerometers

Model	Image	Sensitivity	Weight	Temperature Range
Miniature Charge Accelerometers
A/28/E		0.4pC/g nom.	0.19gm	-50°C to 200°C Max Temp
A/27/E		2pC/g nom.	1.4gm	-50°C to 200°C Max Temp
A/24/E		5pC/g nom.	2gm	-55°C to 250°C Max Temp

Model	Image	Sensitivity	Weight	Temperature Range
General Purpose Charge Accelerometers
A/23/E		8pC/g nom.	3.4-4.9gm	-55°C to 250°C Max Temp
A/22		26pC/g nom.	12gm	-55°C to 250°C Max Temp
A/20		30pC/g nom.	12.5-27gm	(-71°C opt) -55°C to 250°C Max Temp

Model	Image	Sensitivity	Weight	Temperature Range
High Sensitivity Charge Accelerometers

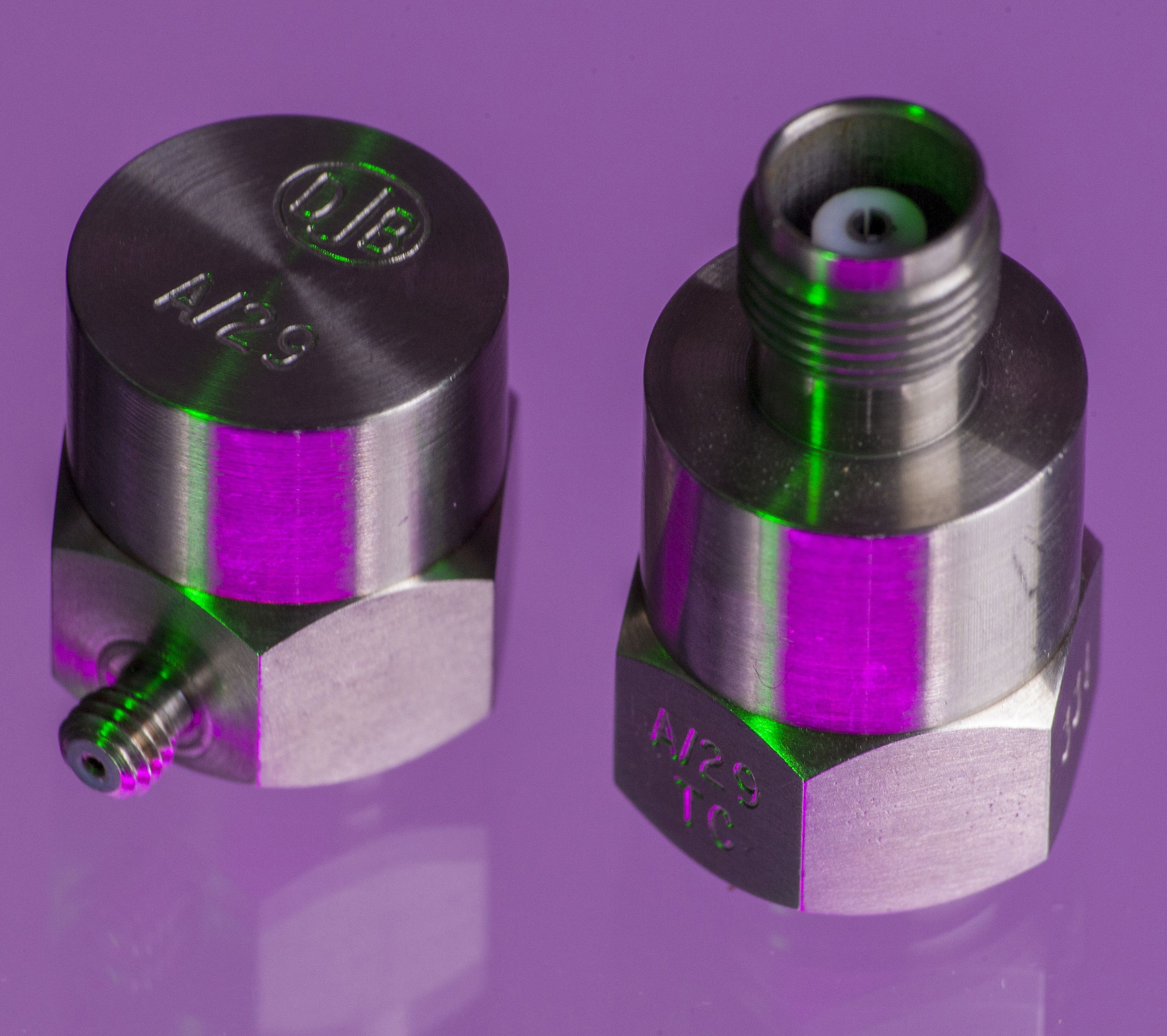

A/29		100pC/g nom.	45-50gm	-50°C to 250°C Max Temp
A/21		360pC/g nom.	95-102gm	-50°C to 250°C Max Temp

Model	Image	Sensitivity	Weight	Temperature Range
Seismic / Micro G Charge Accelerometers
A/600		1.2nC/g nom.	114.5gm	-50°C to 250°C Max Temp
A/800		9nC/g nom.	400-429gm	-50°C to 250°C Max Temp

Model	Image	Sensitivity	Weight	Temperature Range
Industrial Charge Accelerometers
A/52/F		100pC/g nom. A/52/F 12pC/g nom. A/52/F/HT	100-123gm exc. cable	260-400°C
A/81/F		230pC/g nom. A/81/F 35pC/g nom. A/81/F/HT	150-160gm exc. cable	260-400°C

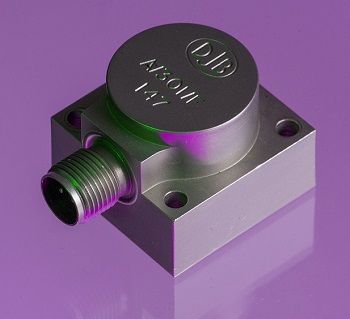

A/301/F		220pC/g nom. A/301/F 25pC/g nom. A/301/F/HT	150gm	260-400°C

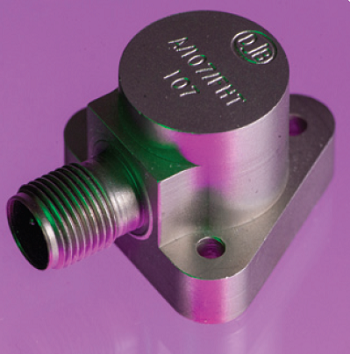

A/107/F		100pC/g nom. - A/107/F : 10pC/g nom. - A/107/F/HT, A/107/F/HT-1	80gm	260-400°C
