AF/100/10 Impedance Head
100mV/g, 10mV/N ∙ 30grams ∙ -40°C to 121°C
Model Variations
AF/50/5 AF/100/10
Applications
- Modal Analysis of lightweight structures
- Automotive
- Aerospace
- Vibration Shaker Testing
- Structural Testing
- Auto/Aero structural body surveys
- Auto/Aero Structural Body Surveys

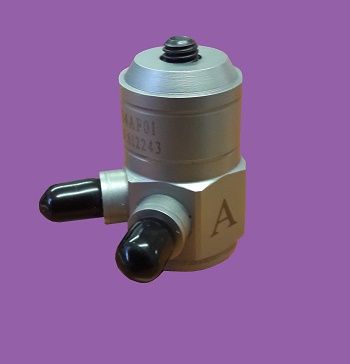

The AF/100/10 Impedance head integrates an IEPE accelerometer and force sensor into one device to measure dynamic acceleration and force simultaneously.
Manufactured in stainless steel, the Impedance head has a mass of 30 grams and an operating temperature range of -40 to +121°C (-40 to +249°F). IEPE sensitivity is 5mV/N for measuring force and 50mV/g for acceleration dependent on your requirements.
With a low impedance voltage mode and an effective anti-jamming facility the AF impedance head is ideal for use in modal and structural analysis. It can be attached to an input stinger that is itself driven by a modal shaker and also attached to the test structure via the two M5 tapped mounting holes. The use of IEPE sensors provides accurate measurement of applied forces over a wide bandwidth providing extensive excitation range for Modal testing, unlike other strain gauge sensors which are used for static and quasistatic environments.
As with all IEPE sensors, setup is easy and the AF can be connected directly to a data acquisition and analysis system equipped with IEPE signal conditioning within the range of 2-10mA and 18-28VDC. Cables of any length can also be supplied to suit all test set ups and the calibration certification supplied provides National traceability.
Calibration
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
Cable Assembly and Repair Service
- Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
- Specialist Cable Assembly - for all manufacturers
- Cable and connector stock held for a quick turnaround
