Magnets & Mounting Blocks
Accelerometer Selection - Points to consider
Accelerometer mounting is a critical part of the testing process and one that is most commonly overlooked having little attention paid to it. To maximise data accuracy the accelerometer must be closely coupled with thes test item and a poor mounting method can introduce significant errors into the data, particularly as frequency levels rise. Please see our Mounting Guide for more information on the types of mounting available or feel free to contact us should you need further advise. These mounting blocks can be used with a range of accelerometers for vibration and shock testing, including high shock tests up to 25,000g
Isolated Mounting Magnets
Product Code Description
IM/01 20.6mm
A/F, 3.7mm 10-32 UNF stud
IM/02 20.6mm
A/F, 10-32 UNF tapped hole
SM/01 Adapter
stud for use with IM/02, 10-32 UNF / 5-40 UNC
SM/02 Adapter
stud for use with IM/02, 10-32 UNF / ¼-28 UNF
SM/03 Adapter
stud for use with IM/02, 10-32 UNF / M6
SM/04 Adapter
stud for use with IM/02, 10-32 UNF / 10-32 UNF
SM/05 Adapter stud for use with IM/02, 10-32 UNF / 5-40 UNC

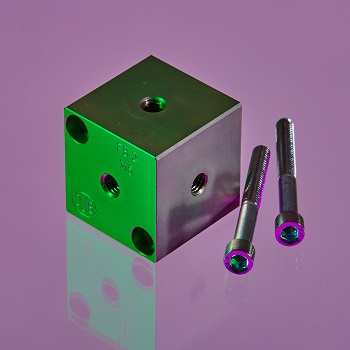

Triaxial Mounting Blocks
The FB range of tri-axial mounting blocks allow you to use single axis accelerometers to carry out triaxial measurements.
Mount two or three accelerometers in the axes you require for multi axis measurement.
Dimensions: 25.4 x 25.4 x 25.4mm
Material: Stainless Steel
Mass: 115gms
2 x mounting holes M4 clearance, mounting bolts provided with block.
Product Code Description
FB1 Stainless
steel 10-32 UNF tapped on 5 faces , supplied with 2x M4 mounting bolts
FB2 Stainless
steel M5 tapped on 5 faces, supplied with 2x M4 mounting bolts
Tri-axial Mounting Block - A/130.Shim
The A/130.shim has been designed for use with the A/130/V.1 specifically for 5000g triaxial shock measurements,
it provides a flexible mounting plate for modification to suit oddly shaped surfaces
Dimensions: 25.4 x 25.4 x 5mm think
Material: Aluminium
3 x 3mmΦ mounting holes
